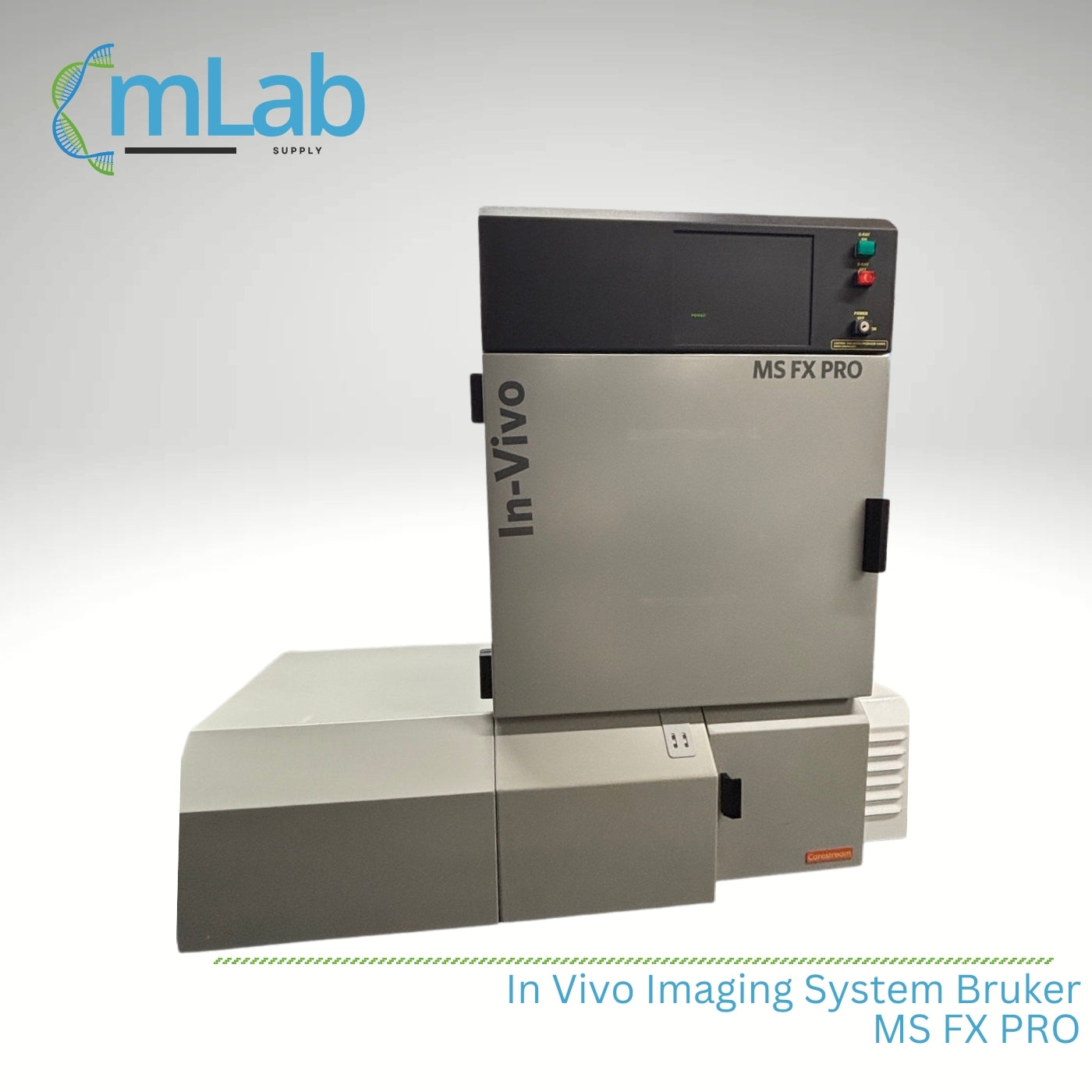

In Vivo Imaging System Bruker In-Vivo MS FX PRO

Bruker In-Vivo MS FX PRO Multimodal Imaging System

The Bruker In-Vivo MS FX PRO is a high-performance multimodal imaging system designed for advanced preclinical and small-animal research. It integrates fluorescence, bioluminescence, radioisotopic, and digital X-ray imaging into a single powerful platform — offering the capabilities of an IVIS-style system with the added benefit of X-ray co-registration for detailed anatomical correlation.

Product Overview

Built for biomedical and pharmaceutical research, the MS FX PRO allows researchers to track and quantify biological processes in vivo. Whether imaging tumor progression, gene expression, or drug biodistribution, this system delivers precise and reproducible data across multiple imaging modes.

Ideal for New Vivarium or IVIS Setup

If you are establishing or expanding a vivarium and need a cost-effective alternative to PerkinElmer IVIS systems, the Bruker MS FX PRO is an exceptional option.

• Designed for in vivo imaging of mice and small animals

• Provides IVIS-equivalent fluorescence and luminescence imaging with the added advantage of X-ray anatomical imaging

• Enables full-body mouse imaging for tumor tracking, reporter gene activity, and biodistribution studies

• Ideal for universities, contract research organizations (CROs), and startup vivariums building out molecular imaging capacity without the high cost of newer IVIS systems

This makes the MS FX PRO a smart choice for labs looking to bring advanced in vivo imaging in-house without compromising capability or image quality.

Key Features

• Multimodal Imaging: Fluorescence, luminescence, radioisotopic, and X-ray imaging in one system

• High Sensitivity CCD Camera: Deep-cooled for ultra-low noise and high dynamic range

• Multispectral Fluorescence Capability: Automated excitation/emission filters for multi-fluorophore imaging and spectral unmixing

• Microfocus X-Ray Imaging: Captures detailed skeletal and soft tissue structure for accurate co-localization

• Integrated Software: Bruker Molecular Imaging software provides acquisition, analysis, and 3D reconstruction

• Environmental Control: Temperature-stable chamber with anesthesia and animal management ports

• Fast Lens Options: High-sensitivity f/0.95 lens and zoom optics for flexible imaging scale

Typical Specifications

• Excitation range: 410 – 760 nm

• Emission range: 535 – 830 nm

• CCD: 2048 × 2048 pixels, 10 µm pixel size

• X-ray energy: 20 – 45 kVp microfocus source

• Exposure time: 0.175 sec – 100 min

• System weight: approx. 313 lbs

Applications

• Small animal (mouse/rat) imaging

• Oncology and tumor progression

• Pharmacokinetics and biodistribution

• Gene expression and bioluminescence assays

• Bone and tissue imaging with X-ray co-registration

• Longitudinal imaging studies in vivarium environments

Condition

Used – Excellent operational condition

• No Software Included

• Clean optics and internal components

• Minor cosmetic wear consistent with normal lab use

Included Components

• Bruker In-Vivo MS FX PRO main unit

• Optical and X-ray imaging modules

• Deep-cooled CCD camera

• Filter wheels (excitation and emission)

• Control computer with Bruker software (version dependent)

• Power cords and animal imaging accessories (where applicable)

Shipping & Handling

• Professionally packed and crated for freight shipping

• Local pickup available

• Buyer responsible for site setup, calibration, and X-ray compliance if applicable

Why Choose the MS FX PRO

The Bruker MS FX PRO offers the power and versatility of an IVIS system with expanded capabilities, including integrated X-ray imaging. It’s perfect for research groups starting a vivarium or expanding preclinical imaging capacity, providing high-end performance and flexibility at a significantly lower cost than new commercial systems
